Convolution routines

Fast convolution

Overview

In fit2x there are a set of different routines that can be used to compute fluorescence decays. Most fluorescence decays are linear combinations of exponential decays. Convolutions of such fluorescence decays with instrument response functions can be computed using the routines (fconv, fconv_per, fconv_per_cs, etc.). Here, fconv stands for fast convolution.

Advanced vector extension

For faster convolutions fit2 provides routines that make use of SIMD (Single Instruction Multiple Data). The SIMD routines use of the AVX2 extension (Advanced Vector Extension). For instance, the routines fconv and fconv_per (periodic convolution) have corresponding SIMD routines named fconv_avx``and ``fconv_per_avx. The SIMD routines compute in parallel the decay in cases the decay is compose of more than a single fluorescence lifetime.

The SIMD AVX make use of AVX2 and FMA (Fused Multiply Add). AVX2 and FMA require CPUs with ‘modern’ instruction sets. Most x86 CPUs that were manufacture since 2012 are supported.

Benchmark

from __future__ import annotations
import fit2x
import scipy.stats
import time
import numpy as np
import pylab as p


period = 16
n_channels = 4505
irf_position = 4.0
irf_width = 0.25
time_axis = np.linspace(0, period, n_channels)
irf = scipy.stats.norm.pdf(time_axis, loc=irf_position, scale=irf_width)

dt = time_axis[1]-time_axis[0]
lifetime_spectrum = np.array([1., 10] + ([1., 4, 1., 0.4] * 4))
model = np.zeros_like(irf)
stop = len(irf)
start = 0
n_runs = 50

# benchmark
################
times = list()
times_avx = list()
names = ["fconv", "fconv_per"]
t_start = time.perf_counter()
for _ in range(n_runs):
    fit2x.fconv(fit=model, irf=irf, x=lifetime_spectrum, start=start, stop=stop, dt=dt)
ex = time.perf_counter() - t_start
times.append(ex)

t_start = time.perf_counter()
for _ in range(n_runs):
    fit2x.fconv_avx(fit=model, irf=irf, x=lifetime_spectrum, start=start, stop=stop, dt=dt)
ex = time.perf_counter() - t_start
times_avx.append(ex)

t_start = time.perf_counter()  # in seconds
for _ in range(n_runs):
    fit2x.fconv_per(fit=model, irf=irf, x=lifetime_spectrum, period=period, start=start, stop=stop, dt=dt)
ex = time.perf_counter() - t_start
times.append(ex)

t_start = time.perf_counter()
for _ in range(n_runs):
    fit2x.fconv_per_avx(fit=model, irf=irf, x=lifetime_spectrum, period=period, start=start, stop=stop, dt=dt)
ex = time.perf_counter() - t_start
times_avx.append(ex)

times = np.array(times) * 1000.0 / n_runs
times_avx = np.array(times_avx) * 1000.0 / n_runs


# make plots
##################

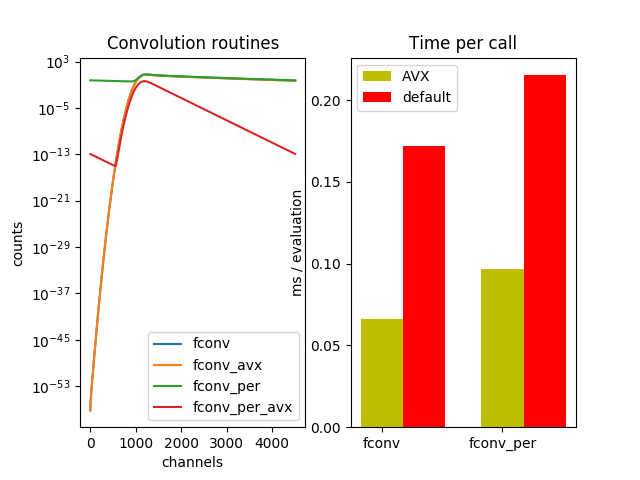

fig, ax = p.subplots(nrows=1, ncols=2, sharex=False)

ax[0].set_title('Convolution routines')
ax[0].set_ylabel('counts')
ax[0].set_xlabel('channels')

model = np.zeros_like(irf)
fit2x.fconv(fit=model, irf=irf, x=lifetime_spectrum, start=start, stop=stop, dt=dt)
ax[0].semilogy(model, label="fconv")

model_avx = np.zeros_like(irf)
fit2x.fconv_avx(fit=model_avx, irf=irf, x=lifetime_spectrum, start=start, stop=stop, dt=dt)
ax[0].semilogy(model, label="fconv_avx")

model = np.zeros_like(irf)
fit2x.fconv_per(fit=model, irf=irf, x=lifetime_spectrum, period=period, start=start, stop=stop, dt=dt)
ax[0].semilogy(model, label="fconv_per")

model = np.zeros_like(irf)
fit2x.fconv_per_avx(fit=model, irf=irf, x=lifetime_spectrum, period=period, start=start, stop=stop, dt=dt)
ax[0].semilogy(model, label="fconv_per_avx")
ax[0].legend()

# Benchmark
ax[1].set_title('Benchmark')
ax[1].set_ylabel('ms / evaluation')

ind = np.arange(len(times))  # the x locations for the groups
ax[1].set_title('Time per call')
ax[1].set_xticks(ind)
ax[1].set_xticklabels(names)

width = 0.35
ax[1].bar(ind, times_avx, width, color='y', label='AVX')
ax[1].bar(ind + width, times, width, color='r', label='default')
ax[1].legend()

p.show()
